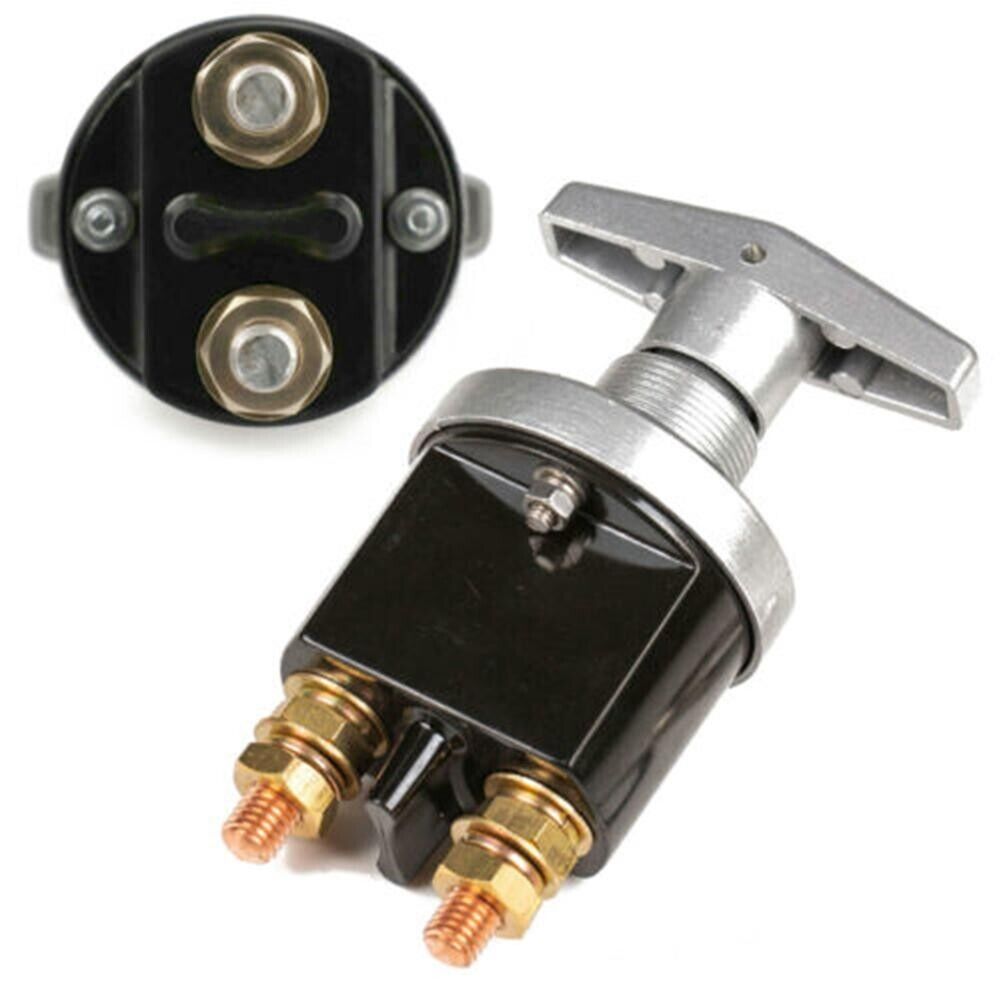

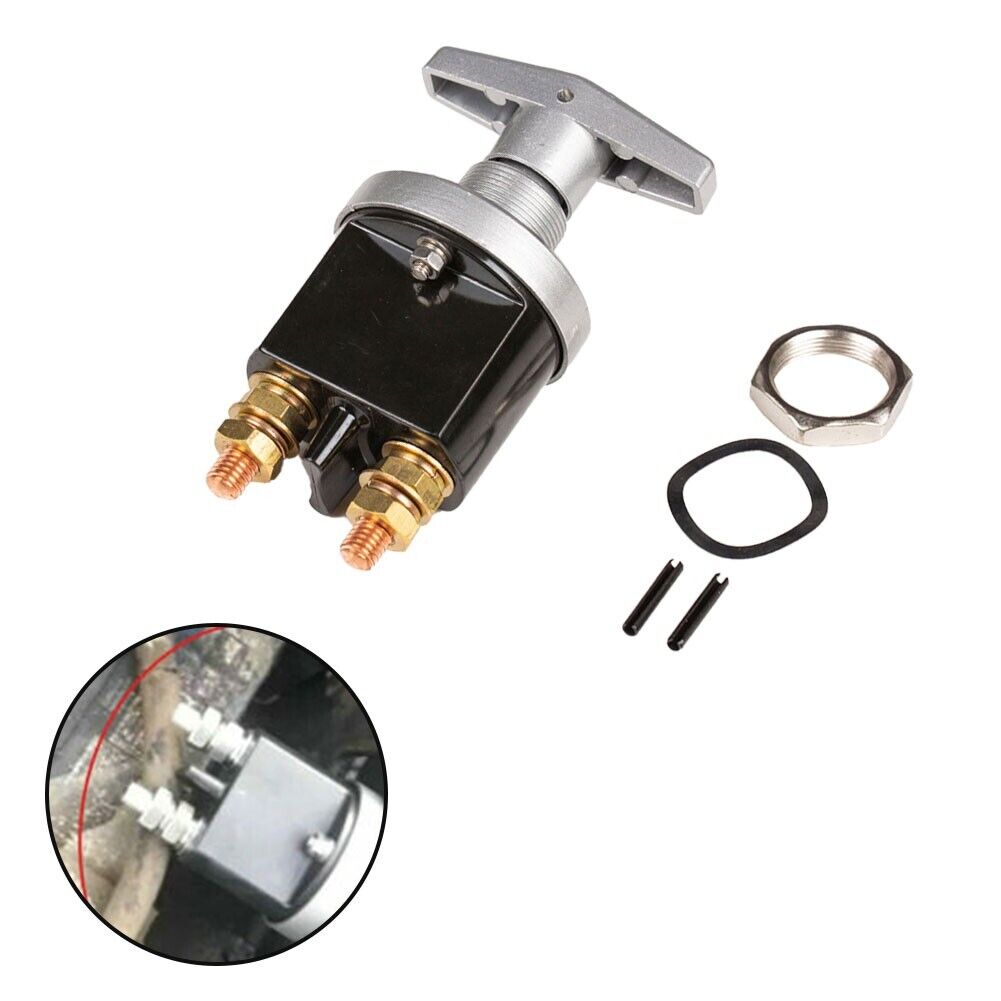

250 AMP BATTERY KILL SWITCH DISCONNECT BAT250HD

Brand new and high quality.

This item is widely used in all kinds of RV, boats, winch power cable, both apply to the inside or the outside electrical equipment's switch, such as flashing light, chassis light, fog light, dome light and so on.

Made of premium quality metal, durable, corrosion resistant, can resist the harsh marine conditions.

Easy to install, it can stand alone, or locked together with other switches.



Note: Engine must be stopped before selecting OFF, this is to protect the alternator. Eliminate any power draw from the battery when are not in use.



Specifications:



Working voltage:12-36V

continuous rating:250A , 36V DC Max

Intermittent rating:1500A

Cranking rating:2500A , 3 seconds

Contact resistance: 50 mΩ Max

Insulation resistance:DC 500V , 100 mΩ Min

Dielectric strength:AC 1000, 1 Minute . DC 1000, 1 Minute

Operation temperature:-40℃ ~ +85℃

Switch function:ON-OFF

Waterproof grade:IP65
