The Big Switch with Lever Kit
The Big Switch with Lever Kit
Regular price
$140.00 USD
Regular price
$149.43 USD
Sale price
$140.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

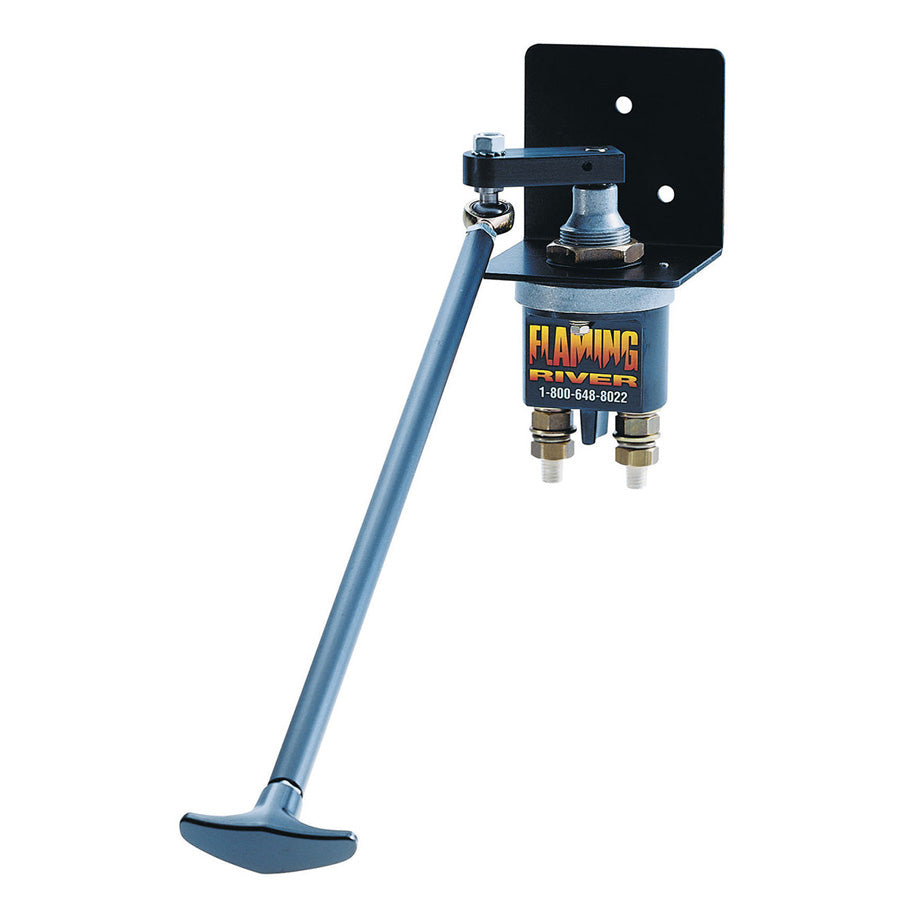

The lever kit allows for remote actuation of the Big Switch. The kit includes an 18" long, aluminum threaded rod, T-handle, mounting bracket and necessary hardware. A "push off" decal is included. The Big Switch is a heavy-duty battery disconnect switch rated at 250 Amps of continuous service in 12V, 16, and 24V systems. The Big Switch is manufactured with silver plated electrical contacts and a sealed, water resistant design that is able to withstand the most severe operating conditions.
| Part No. | FR1003-2 |
| Max Continuous Current | 250 Amps |
| Max Surge Current | 2,500 Amps (5 seconds) |
| Environmental Protection Rating | IP65 |
| Water Resistant | Yes |
| Operating Temperature Range | -40°C to +80°C / -40°F to +176°F |
| Contact Terminals | Silver-Plated Copper |
| Contact Hardware | Nickel-Plated Brass |
| Additional Notes | Approved for NHRA/IHRA competition use |
| Available Stud Length | 0.775" (approx. 25/32 in.) |
| Extension Handle/Lever | Yes |
| Extension Part No. | FR1006 |
| LED On/Off Indicator | No |
| Lock-Out Capability | No |
| Max Tightening Torque | 11-13 ft. lbs. |
| Mounting Bracket Included | Yes |
| Mounting Bracket Part No. | FR1007 |
| Stud Diameter | M10 |
| Terminal Covers Included | No |
| Terminal Covers Part No. | FR1003TM (pair) |
| Voltage | 12V/24V |
